CATALOG

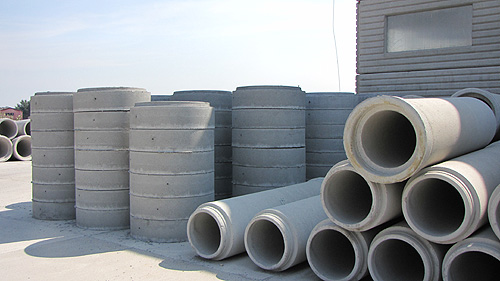

Drainage pipes and culverts

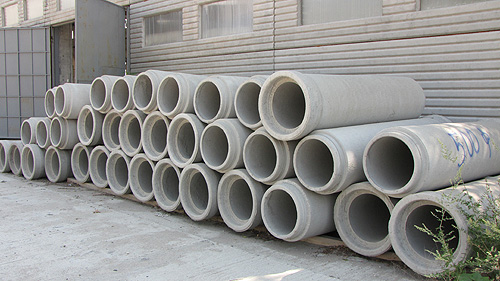

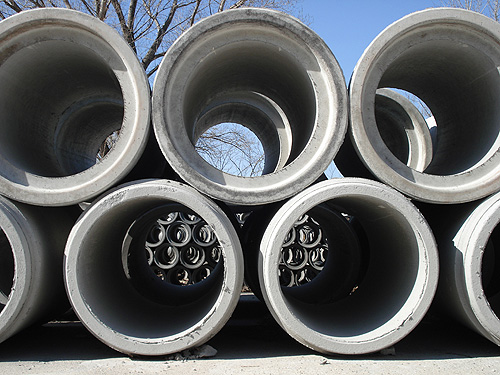

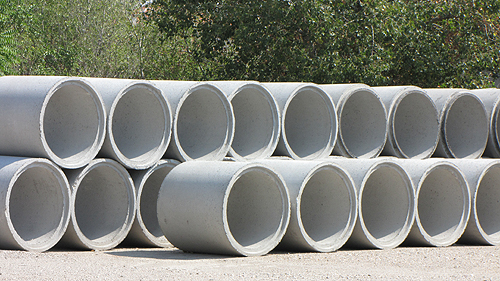

1. Unconfined concrete pipes, round,without heel, folded (BDS 17004-89, BDS 895-80)

Name	Nomencl. №	Wall tickness	lenght	D	m
		mm	m/бр	m	kg
Concrete pipes ø200	ТФ 200x1000	32	1	0,2	57
Concrete pipes ø300	ТФ 300x1000	44	1	0,3	125
Concrete pipes ø400	ТФ 400x1000	51	1	0,4	200
Concrete pipes ø500	ТФ 500x1000	85	1	0,5	365
Concrete pipes ø600	ТФ 600x1000	100	1	0,6	515
Concrete pipes ø800	ТФ 800x1000	100	1	0,8	670

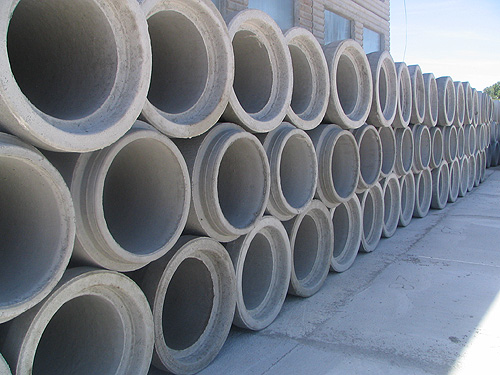

2. Concrete pipes, round,without heel with rubber seal and socket, low pressure (BS 17004-89, BDS 895-80)

Name	Nomencl. №	wall tickness	length	D	m
		mm	m/бр	m	kg
Concrete pipes ø500	ТМ-У 500x2500	85	2,5	0,5	1010
Concrete pipes ø600	ТМ-У 600x2500	100	2,5	0,6	1420
Concrete pipes ø800	ТМ 800x2000	100	2	0,8	1580
Concrete pipes ø1000	ТМ 1000x2000	130	2	1	2510

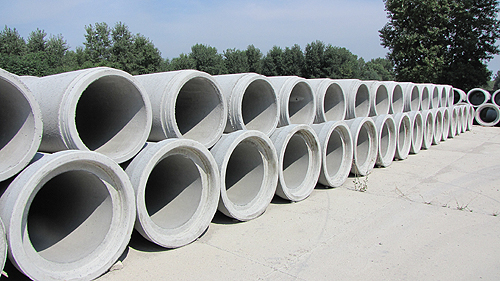

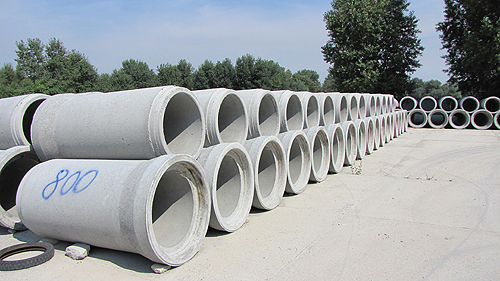

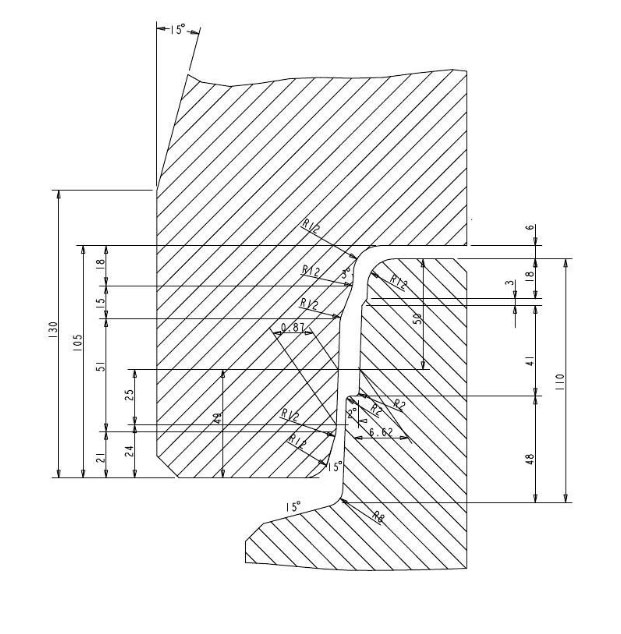

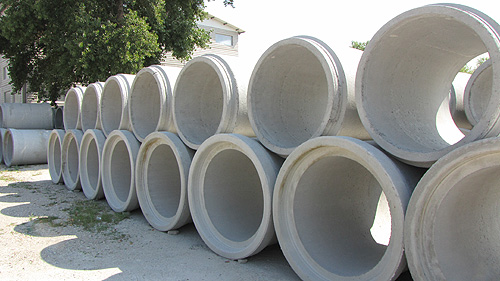

3.Reinforced concrete pipe, round,without heel, a rubber seal and socket, low pressure (BDS 17343-93;)

Name	Nomencl. №	wall tickness	length	D	m	clas	Fc
		mm	m/бр	m	kg		kN/m'
Reinforced concrete pipes ø800	ТКСБ-М-800x2000	100	2	0,8	1655	I;II;III	55; 75; 100
Reinforced concrete pipes ø1000	ТКСБ-М-1000x2000	130	2	1	2625	I;II;III	68; 88; 130
Reinforced concrete pipes ø1200	ТКСБ-М-1200x2000	140	2	1,2	3270	I;II;III	80; 108; 150

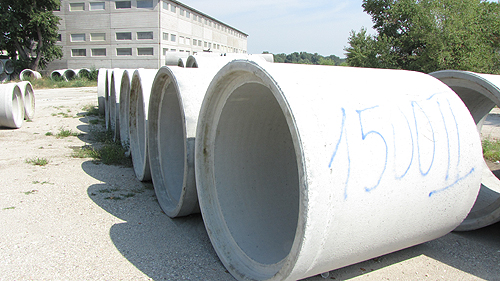

Reinforced concrete pipes ø1500	ТКСБ-М-1500x2000	165	2	1,5	4500	I;II;III	100; 135; 190

4. Reinforced concrete pipes for road and railway culverts, round heel with rubber gasket and sleeve,low pressure (BDS 1518-71, BDS 1704-89)

Name	Nomencl. №	wall tickness	length	D	m	Fc
		mm	m/бр	m	kg
Reinforced concrete pipes ø500	Т 50x80x99	90	1	0,5	450	55
Reinforced concrete pipes ø800	Т 80x10x99	110	1	0,8	770	71
Reinforced concrete pipes ø1000	Т 100x13x99	130	1	1	1120	140
Reinforced concrete pipes ø1500	Т 150x15x99	165	1	1,5	1900	255

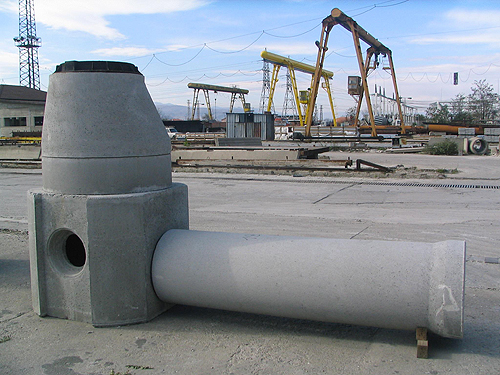

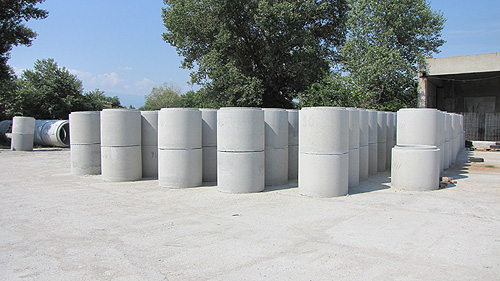

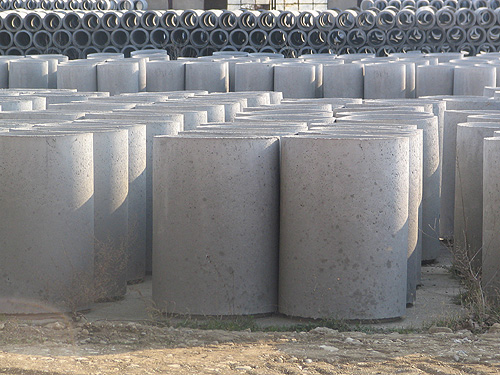

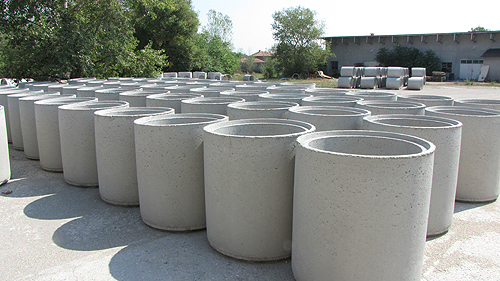

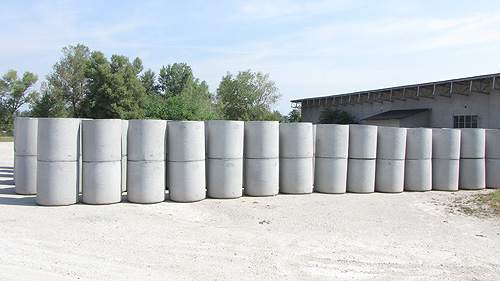

5. Concrete rings, cones and bottom. Applied. A and B - BS EN 1917

Name	Nomencl. №	wall tickness	length	D	m
		mm	m/бр	m	kg

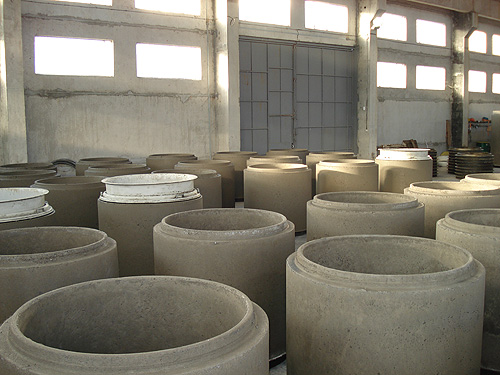

Concrete rings   ø1000 за РШ	1000x1000	100	1	1	860
Concrete rings   ø1000 за РШ	1000x500	100	0,5	1	425
Concrete rings   ø1000 за РШ	1000x250	100	0,25	1	210

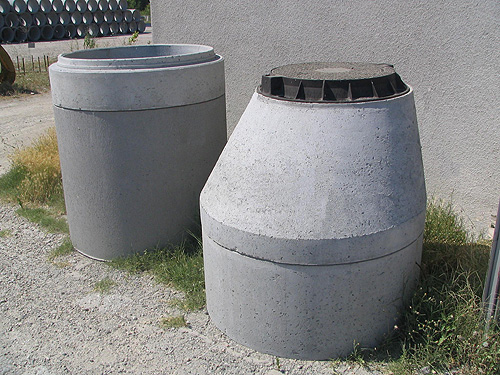

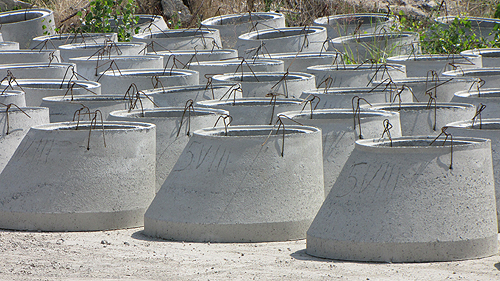

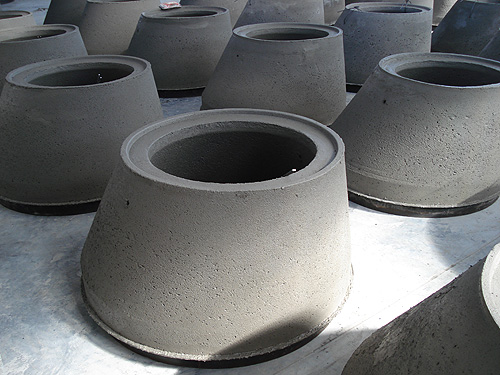

Cone for manhole	650/1000x600	100	0,6	0,65/1	500
Bottom for manhole	1000	150	1	1	1840

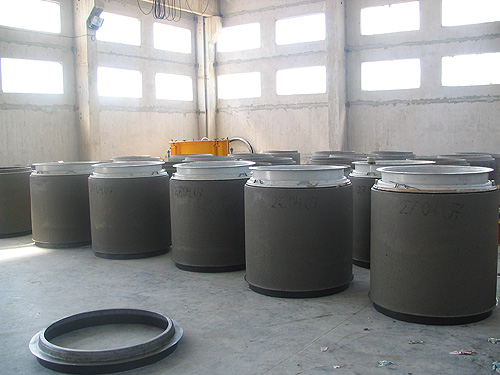

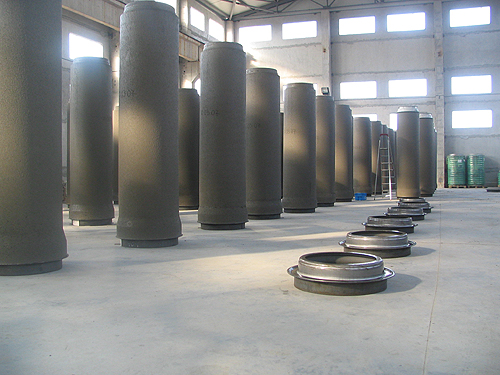

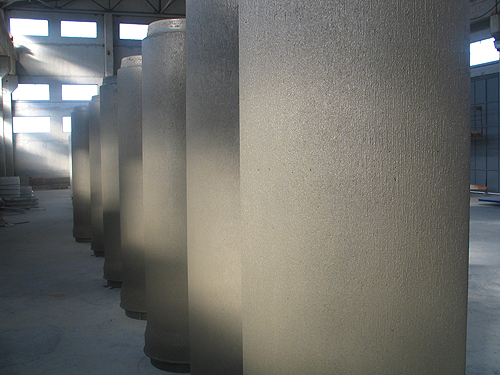

SBKI has a base and has extensive experience in the production of concrete sewer pipes. In 2006 we introduced a new Danish technology for production of pipes - Pedershaab.

Engineering and technical team of the company has developed static and empirical analysis and technical guidance for making pipes. Along with this there are test bench strength of pipes and cracks and laboratory examination of material needed for their construction. All this has led to achieve the quality of products relating to the requirements of BS and EN for the classes and categories.
